Purpose-engineered for commercial facades, interior feature walls, and large-scale fitout projects. Linea Screening gives distributors and contractors a specification-grade composite batten with full OEM flexibility and no middleman markup.
Wholesale & trade pricing available. Custom sizes, colours, and packaging on request.
ABOUT THIS PRODUCT
A handful of consumer-facing brands dominate the American market for architectural composite fence panels. But for distributors managing commercial accounts — and contractors running multi-building projects — those brands come with fixed SKUs, limited profile options, and pricing structures built around retail margins.
Linea Screening is manufactured and supplied directly from our production facility with no intermediary distribution layer. That means your cost structure improves, your lead times are confirmed at order placement, and your product can carry your label, your color, and your specified dimensions.
This is not a rebranded consumer decking product fitted with a batten profile. Linea composite fence panels are purpose-built for facade and screening applications — co-extruded from recycled hardwood fiber and HDPE with a permanently bonded cap layer that eliminates the two failure modes that drive warranty claims in composite screening: surface delamination and moisture-driven dimensional shift.
0.8 mm
Integral Cap Layer
Co-extruded simultaneously with the core — no interface layer, no delamination risk over the product lifecycle
ΔE ≤ 4–5
Color Shift · 3,000 hrs QUV
Batch-to-batch color consistency across multi-run commercial orders — no visible variation across a full facade elevation
0.2%
Water Absorption · ASTM D1037
Profile dimensions stay stable through wet and dry seasons — batten spacing at year ten reflects the installation spec
60% Recycled
Recycled HDPE Content
Supports LEED documentation and sustainable procurement reporting for commercial project owners and developers
Linea Composite Fence Panels is supplied directly from our manufacturing facility to building material distributors, commercial builders, and fitout contractors across the United States — eliminating the distributor tier without compromising on documentation, lead time reliability, or order support.
The trade supply program includes:
TECHNICAL DATA
Dimensional and packing data for project planning and procurement.
Product Detail
Most composite battens that generate field complaints share one of two failure modes. Either the surface finish — a coating or laminate applied after the core is formed — begins to chip, blister, or peel under UV exposure and temperature cycling. Or the core absorbs sufficient moisture to shift dimensionally, pushing batten spacing out of specification and creating visible unevenness across a facade elevation.
Linea composite fence panels address both failure modes at the manufacturing stage.
The cap layer is not applied after the core exits the extruder. It is formed in the same production step, using a co-extrusion die that creates the cap and core as a single unified structure. There is no adhesive interface, no coating-to-substrate bond to break down, and no delamination pathway.
The core composition — recycled hardwood fiber combined with HDPE — is formulated to an ASTM D1037 water absorption result of 0.2%. At that absorption level, seasonal moisture variation produces no measurable dimensional change. Battens installed to a specified shadow line gap in spring will hold that gap through summer heat and winter rain without corrective maintenance.
For commercial contractors managing projects across multiple facades or buildings, this means installation tolerances are not a first-year performance question. The material holds its form.
Linea composite fence panels are manufactured to international test standards and hold the certifications required for commercial project specification and procurement approval in Australia.
| Standard | Scope | Result |
|---|---|---|
| EN 717-1 | Formaldehyde emission | Not detected |
| ASTM D1037 | Water absorption | 0.2% |
| QUV Accelerated Weathering | Colour shift after 3,000 hrs | ΔE ≤ 4–5 |
| DIN 51130 / AS 4586 | Slip resistance | R11 |
| CE / ISO / RoHS / SGS | General compliance | Certified |
Linea composite fence panels are available with full OEM and ODM customisation — including custom batten lengths, proprietary colour finishes, surface embossing variations, and private-label packaging for wholesale accounts. Custom profile moulds can be developed for projects with specific section requirements.
Supply programmes are structured for commercial builders, fitout contractors, building material wholesalers, and property developers. Contact our trade team for current MOQ thresholds, container lead times, and volume pricing structures.
Colour Range
All colours are co-extruded into the board surface — not painted — ensuring colour retention for the life of the product. Custom colours available for volume orders.

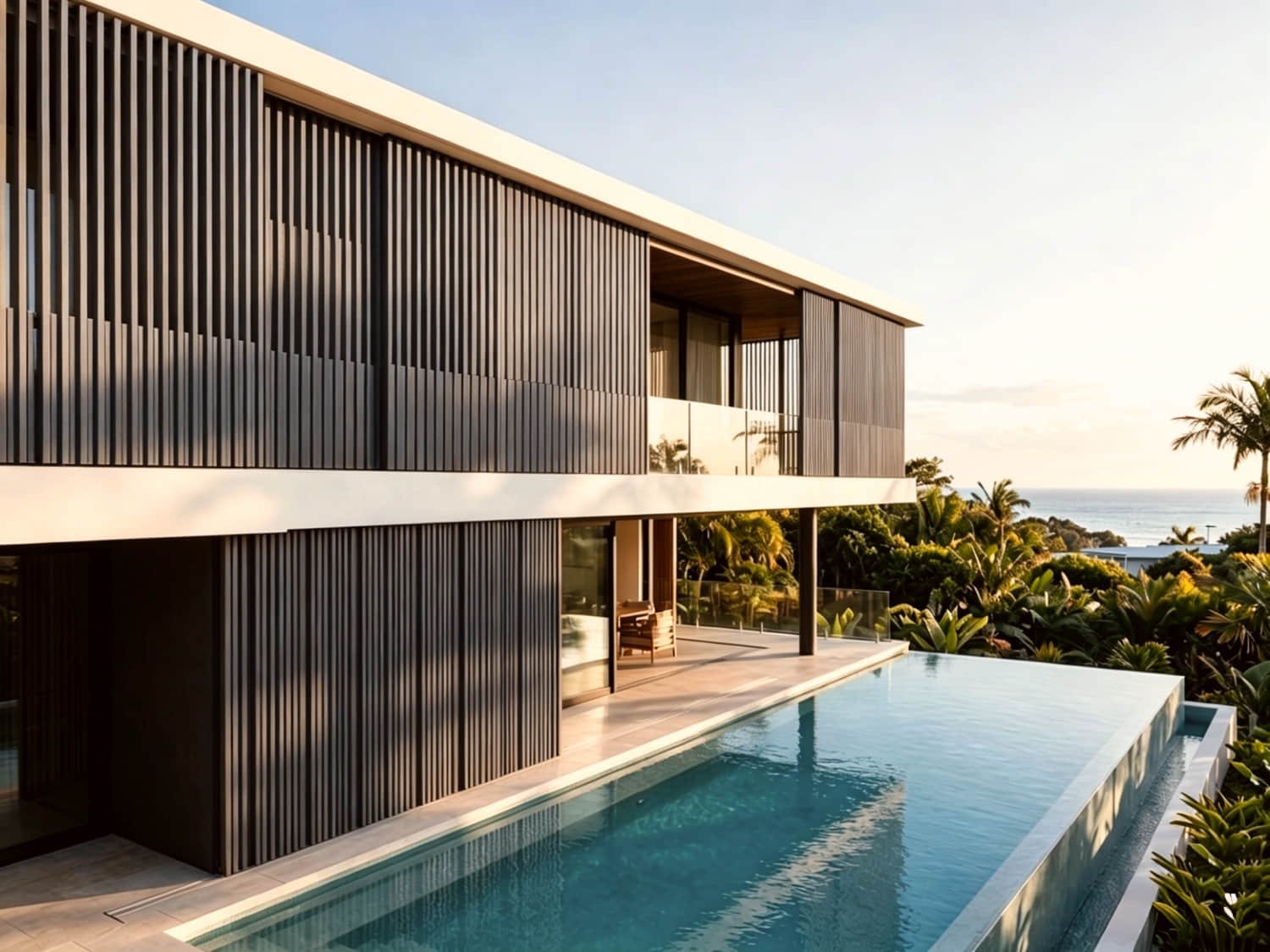

WN01
TK01
TK02

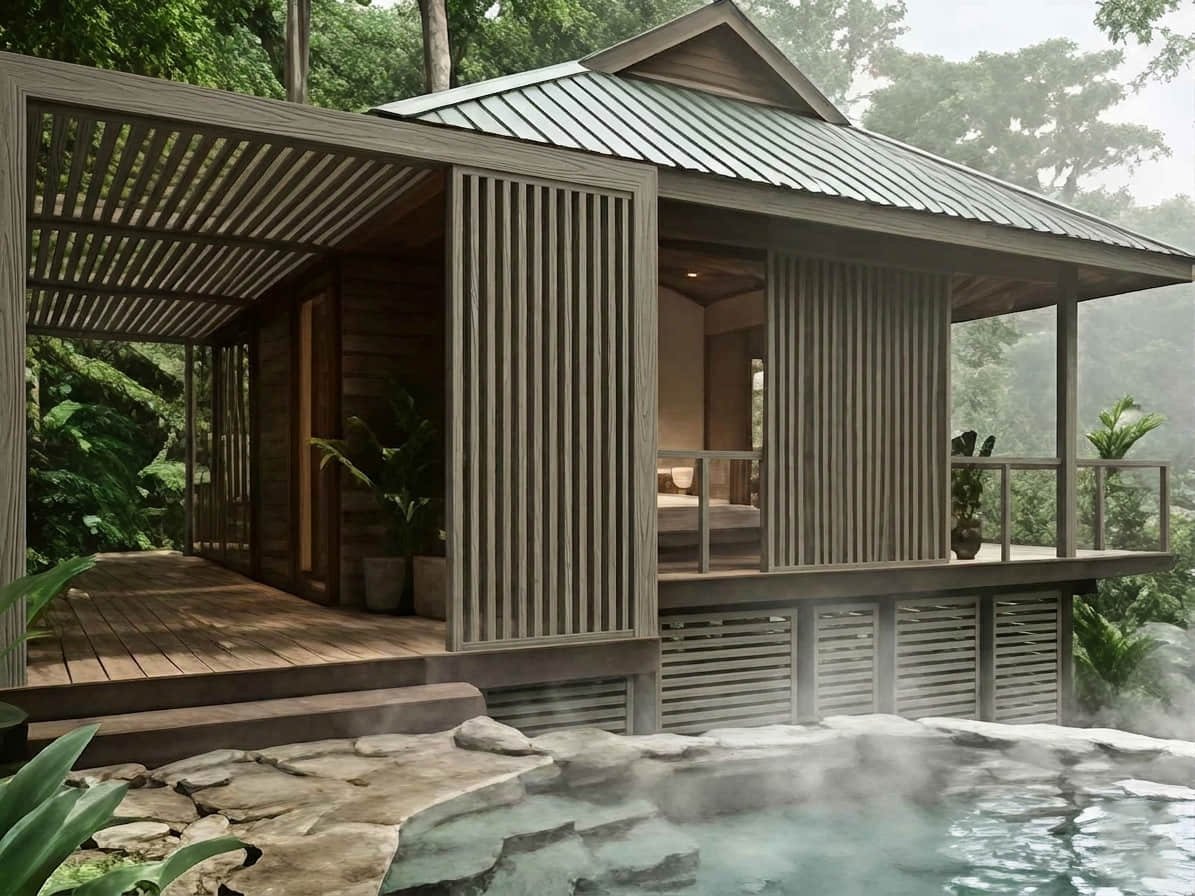

OAK01

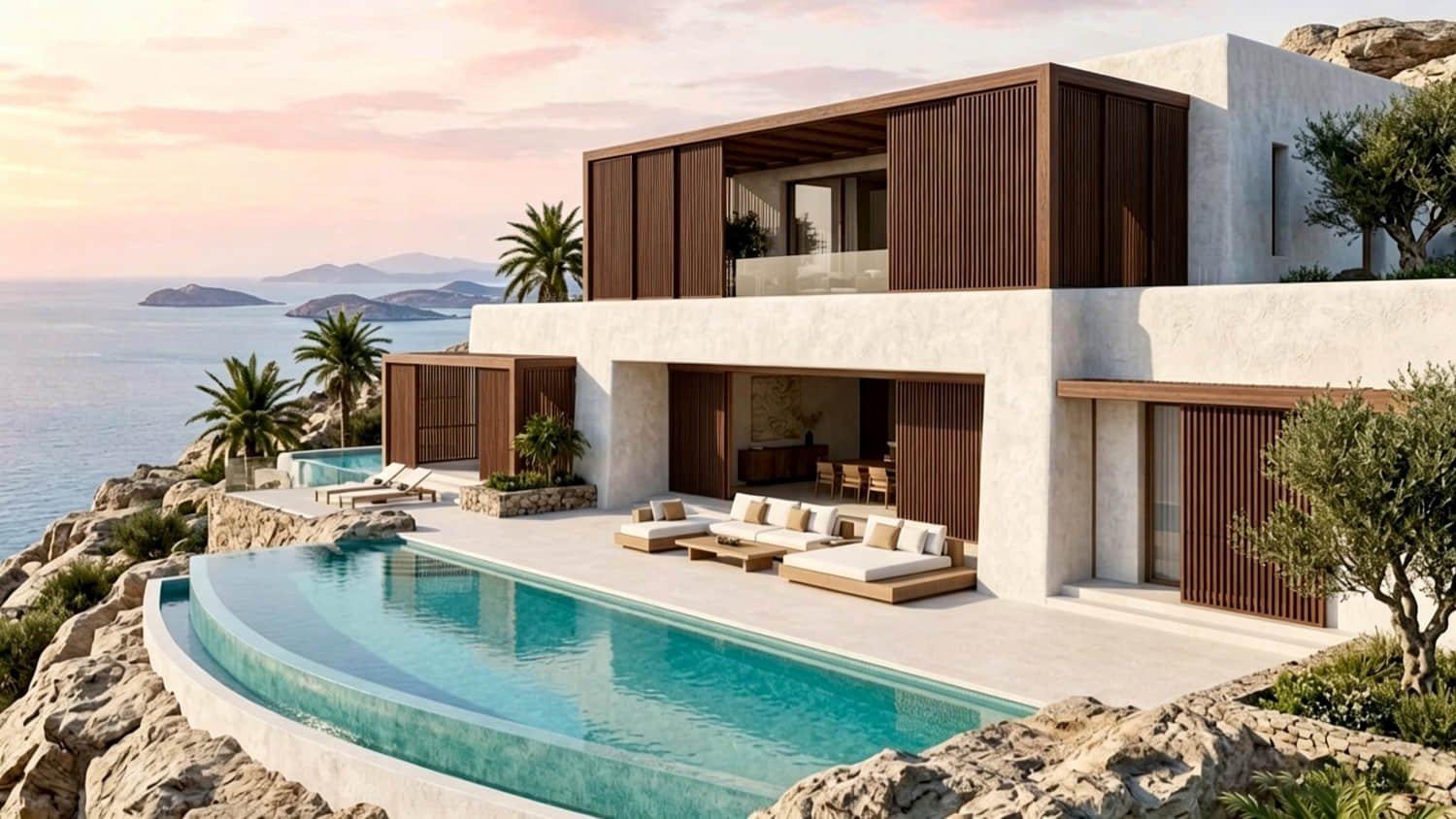

RB01

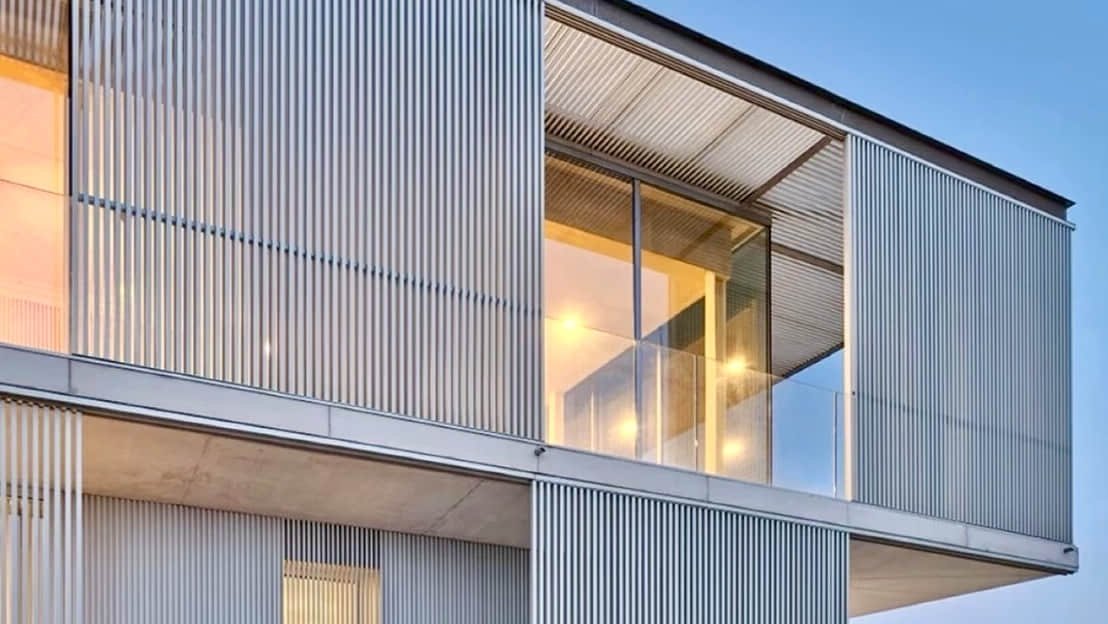

AT01

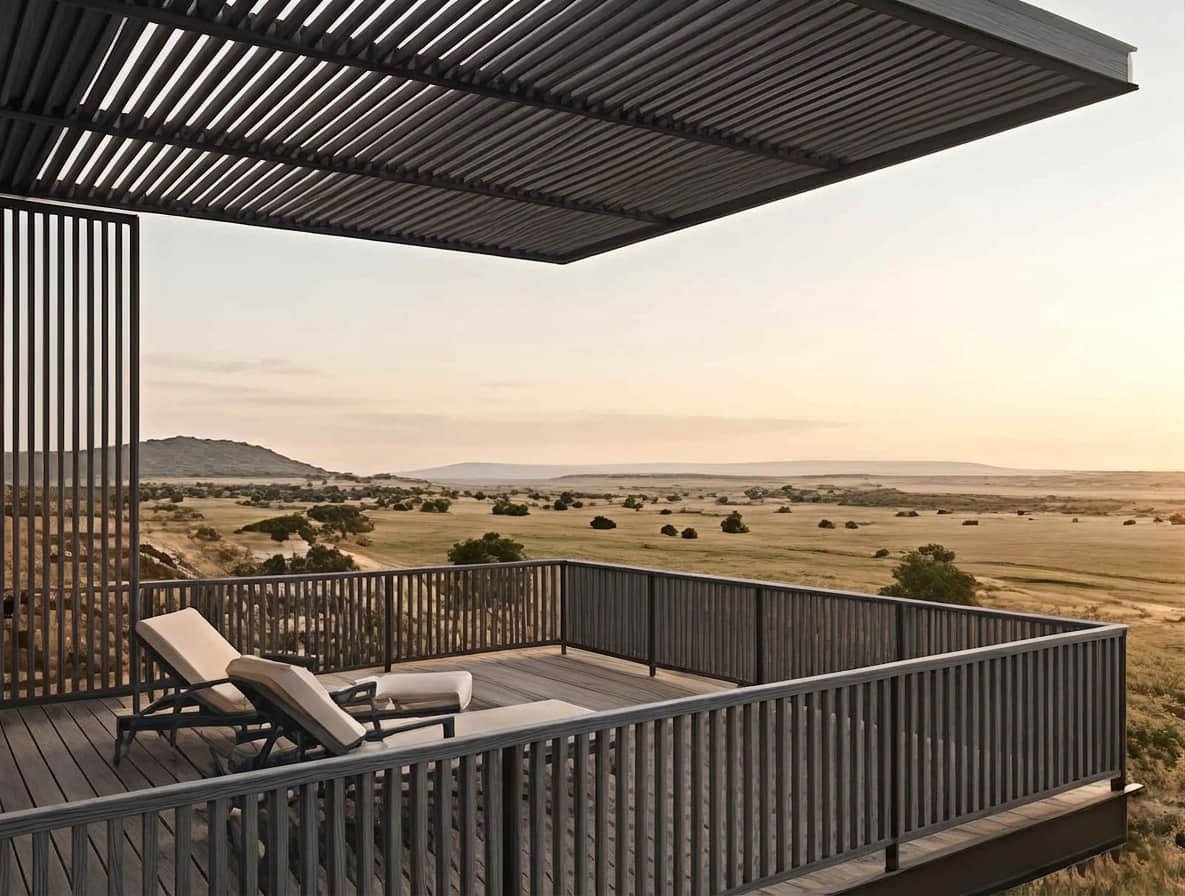

SI02
SI01
MATERIAL COMPARISON
Commercial fence panel projects in the U.S. are most commonly specified in one of four material categories. Each carries a different performance profile, maintenance liability, and total cost of ownership over a 10–15 year project lifecycle.

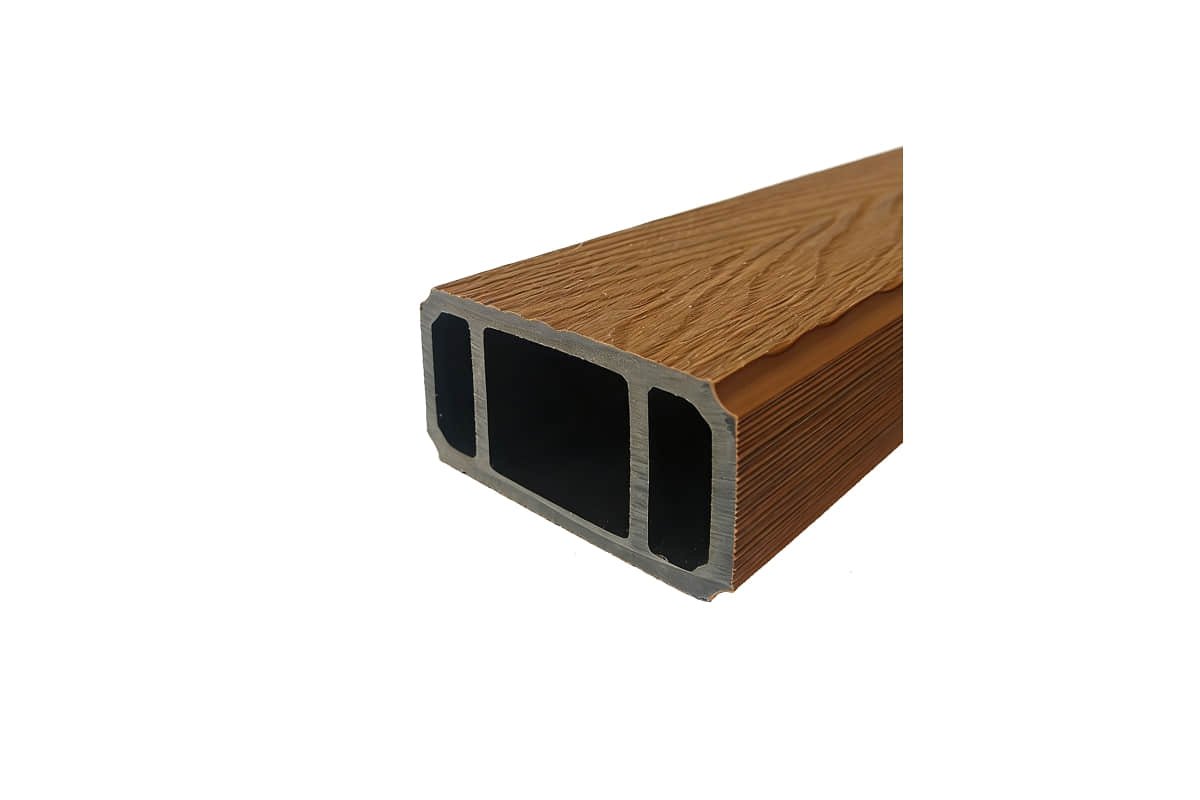

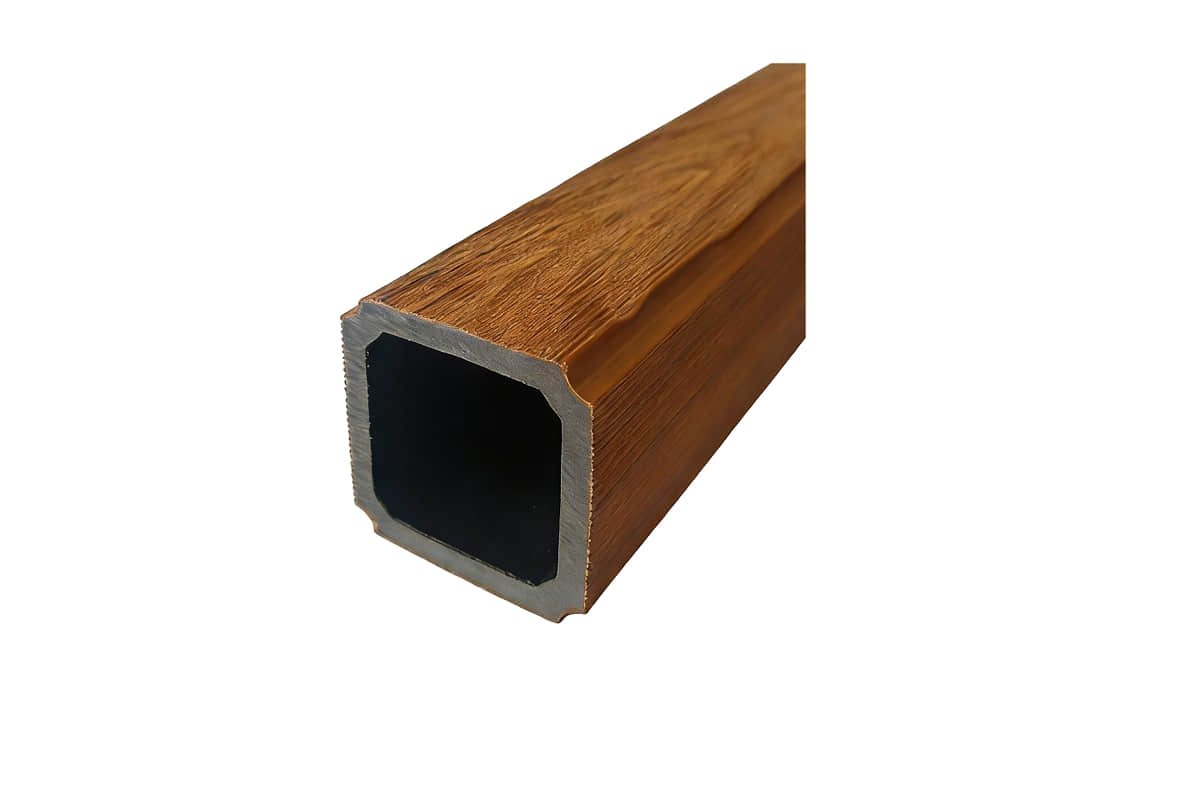

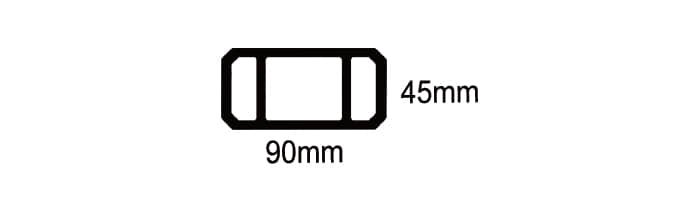

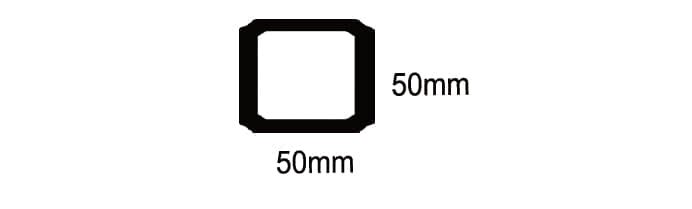

Commercial facade screening, architectural privacy screens, exterior feature walls, retail frontage battens, office fitout partitions, and residential development feature walls at scale. The two profile sizes — 45×90 mm and 50×50 mm — cover the majority of shadow-line and spacing density requirements in commercial specification.
Yes. Linea Screening is compatible with vertical, horizontal, and angled installation configurations. The clip-fix and face-screw fastening options adapt to standard aluminum and WPC sub-framing systems without modification.
Standard production lead time is 10–15 business days from order confirmation. OEM and custom-color orders may require an additional 5–7 days for color batch approval. Sea freight transit to U.S. West Coast ports is approximately 25–30 days from FOB departure.
Yes — in full. Color, surface texture, batten length, profile shape, and retail or bulk packaging are all available as OEM specifications. Private-label packaging is available for regional distributors. Contact our trade team for MOQ thresholds on custom production runs.
The 60% recycled HDPE content and formaldehyde-free material composition support low-embodied-carbon and recycled-material credit documentation. Material data sheets and content declarations are available on request.
Standard aluminum alloy or WPC post-and-rail sub-framing. No proprietary fastening system is required. The concealed clip system is compatible with industry-standard aluminum framing profiles used in commercial construction across the U.S.
