The architectural screening batten engineered for Australian facades, feature walls, and commercial fit-outs — where design intent meets long-term material performance.
Wholesale & trade pricing available. Custom sizes, colours, and packaging on request.
ABOUT THIS PRODUCT
Linea composite fence panels are a co-extruded composite architectural batten — engineered from recycled hardwood fibre and permanently sealed through full co-extrusion. The result is a batten that carries genuine timber warmth without the dimensional instability, grey weathering, or treatment cycles that come with natural hardwood.
Where privacy fence boards prioritise solid coverage, Linea prioritises shadow line and visual rhythm. Sized for designers and builders who need precise control over spacing density, light filtration, and facade depth — whether on a commercial retail frontage, an office fitout partition, or a high-end residential feature wall.
0.8 mm
Cap Layer Thickness
A sealed polymer barrier — resists UV penetration,surface staining, and moisture ingress
ΔE ≤ 4–5
Colour Shift · 3,000 hrs QUV
Colour stability validated for Australia's extreme UVindex — no significant fading over a decade of exposure
0.2%
Water Absorption · ASTM D1037
Negligible moisture uptake means battens hold theirprofi le and spacing — season after season
60% Recycled
Recycled HDPE Content
Contributes to Green Star and low-embodied-carbondocumentation for commercial project sign-off
We supply Linea composite fence panels directly from our manufacturing facility to building material wholesalers, commercial builders, and fitout contractors across Australia — eliminating the distributor margin without compromising documentation, compliance, or lead-time certainty.
Trade supply programme includes:
TECHNICAL DATA
Dimensional and packing data for project planning and procurement.
Product Detail
Composite battens fail in the field for one of two reasons: the surface finish breaks down, or the core absorbs moisture and distorts. Linea composite fence panels are engineered to eliminate both failure modes. The co-extruded cap is not a coating applied after manufacture — it is formed simultaneously with the core, creating a single unified structure with no interface layer to delaminate, bubble, or peel over time.
For facade and feature wall applications, colour consistency across a full elevation matters — particularly when battens are specified in batches and installed over extended construction programmes. Linea’s UV stabilisation system is formulated to keep colour variation within a controlled tolerance across the product’s service life, so the installed result at year ten reflects the specification intent at year one.
Linea Screening is manufactured to international test standards and holds the certifications required for commercial project specification and procurement approval in Australia.
| Standard | Scope | Result |
|---|---|---|
| EN 717-1 | Formaldehyde emission | Not detected |
| ASTM D1037 | Water absorption | 0.2% |
| QUV Accelerated Weathering | Colour shift after 3,000 hrs | ΔE ≤ 4–5 |
| DIN 51130 / AS 4586 | Slip resistance | R11 |
| CE / ISO / RoHS / SGS | General compliance | Certified |
Linea composite fence panels are available with full OEM and ODM customisation — including custom batten lengths, proprietary colour finishes, surface embossing variations, and private-label packaging for wholesale accounts. Custom profile moulds can be developed for projects with specific section requirements.
Supply programmes are structured for commercial builders, fitout contractors, building material wholesalers, and property developers. Contact our trade team for current MOQ thresholds, container lead times, and volume pricing structures.
Colour Range
All colours are co-extruded into the board surface — not painted — ensuring colour retention for the life of the product. Custom colours available for volume orders.

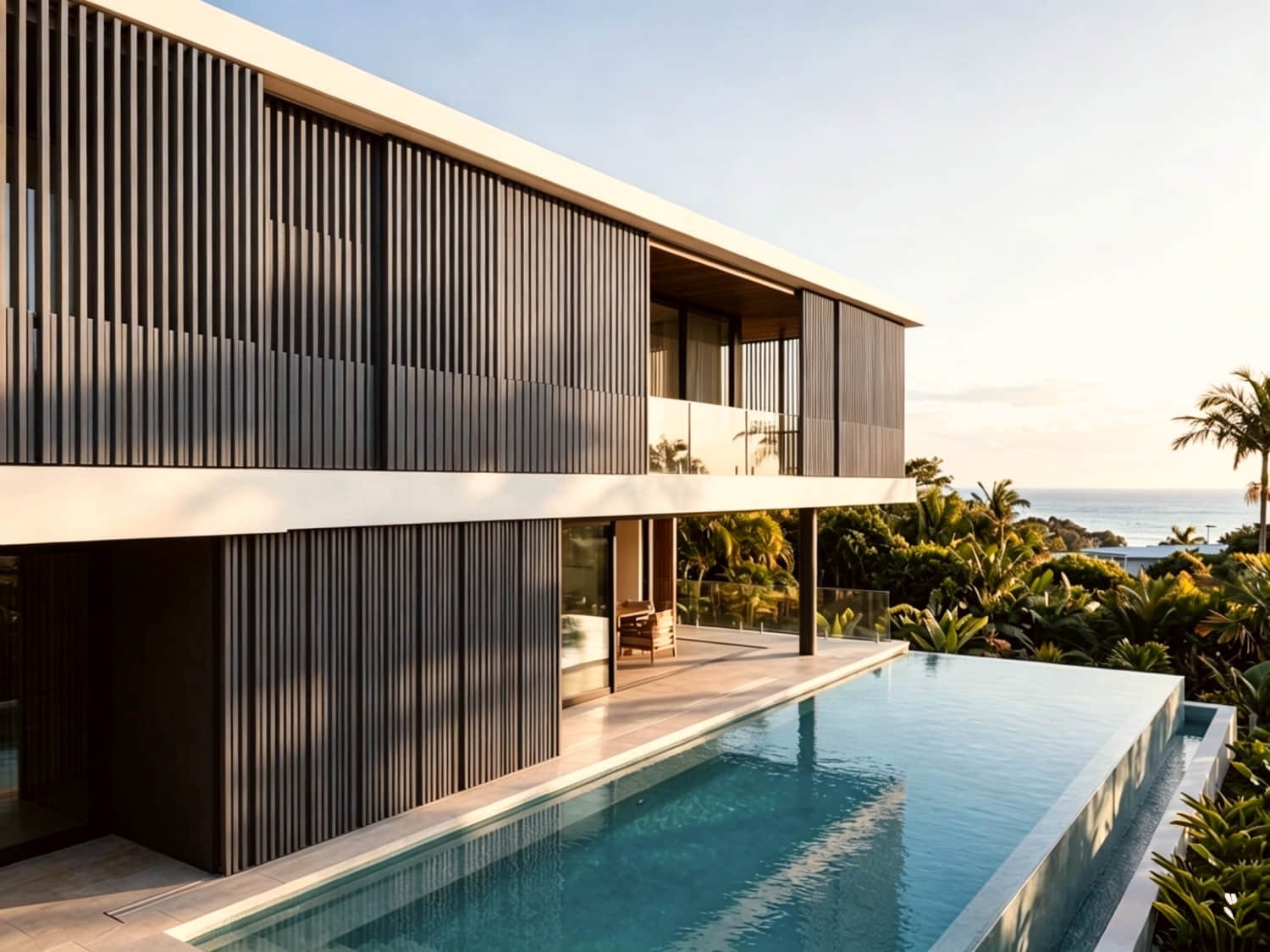

WN01

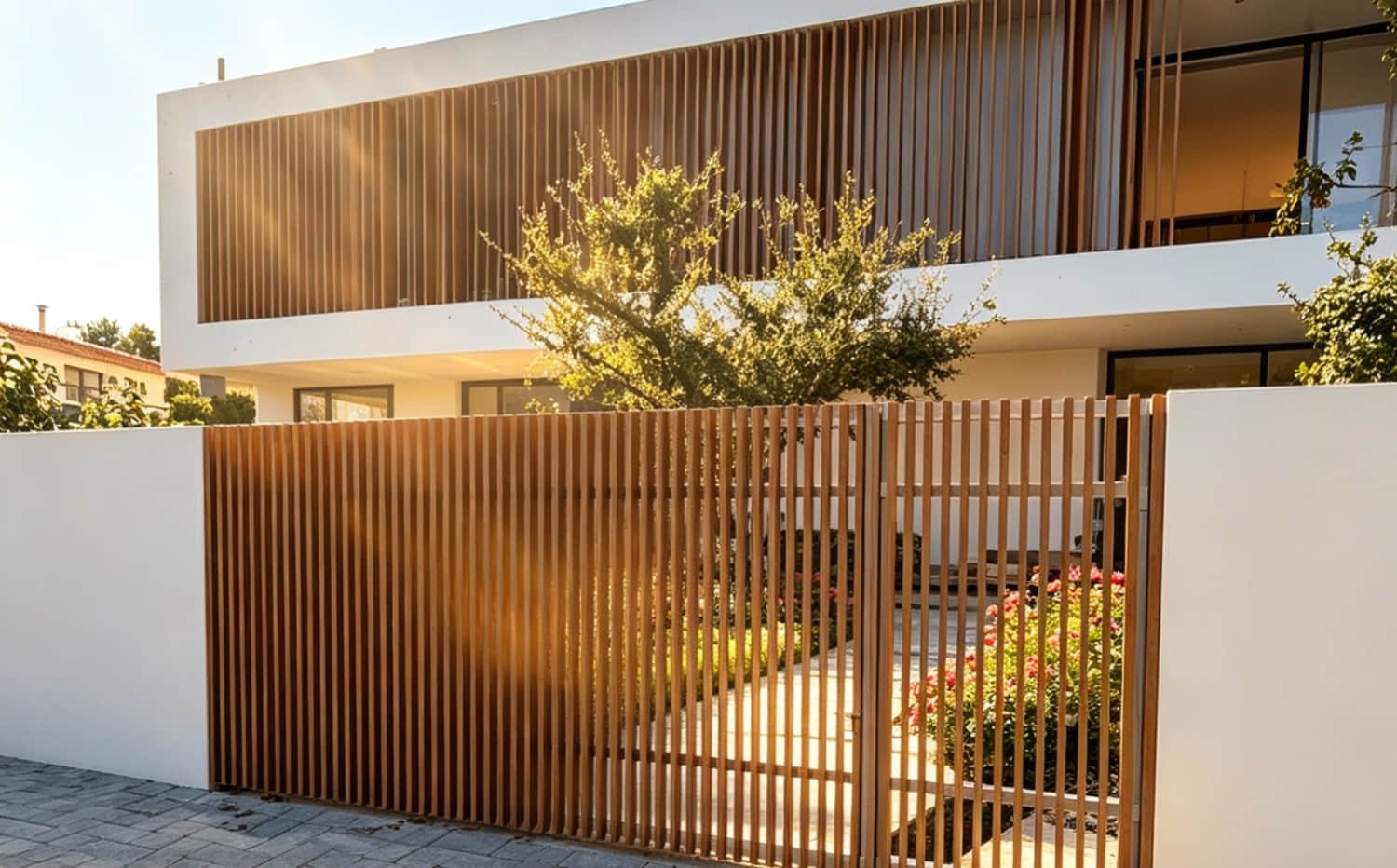

TK01

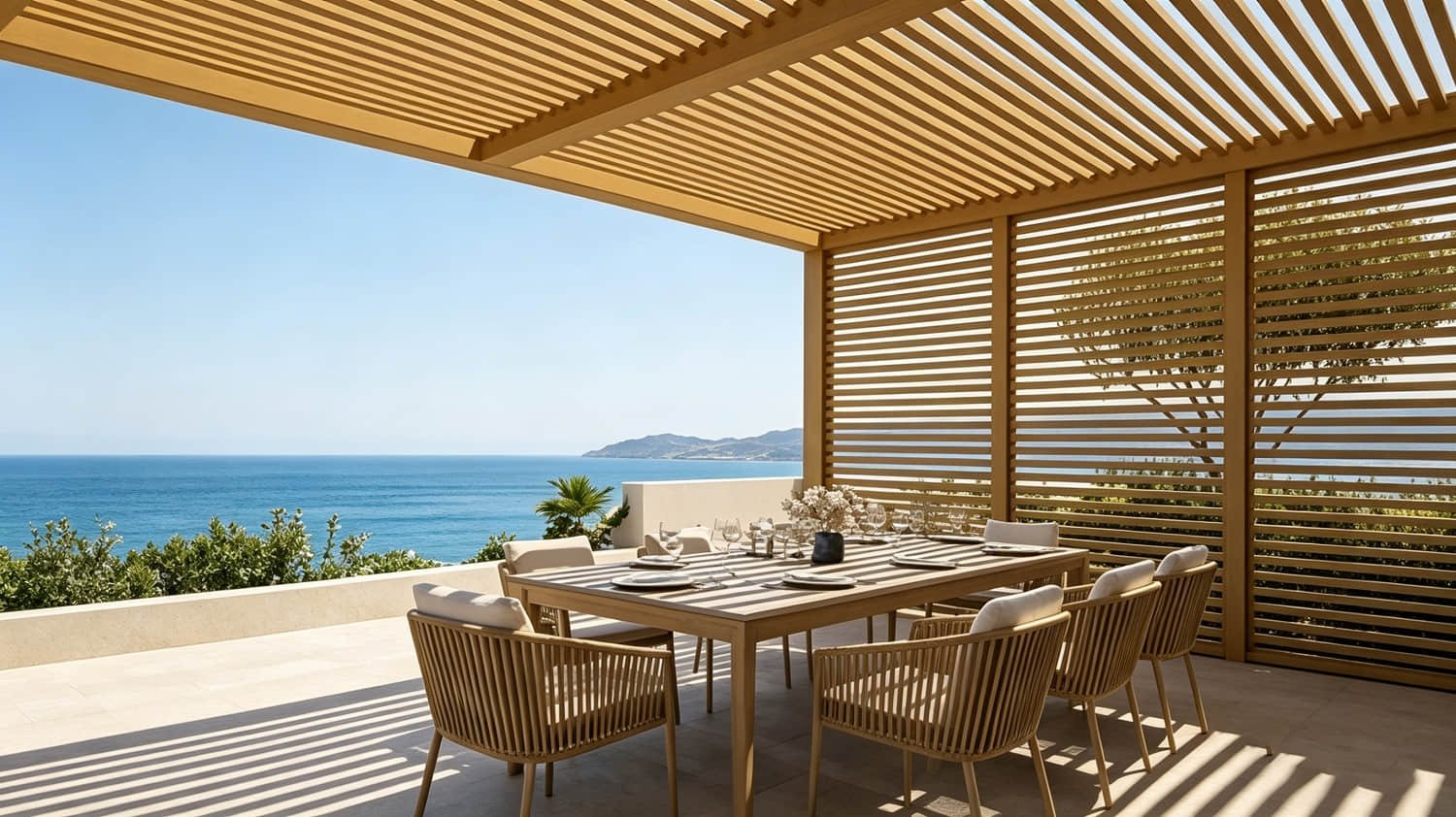

TK02

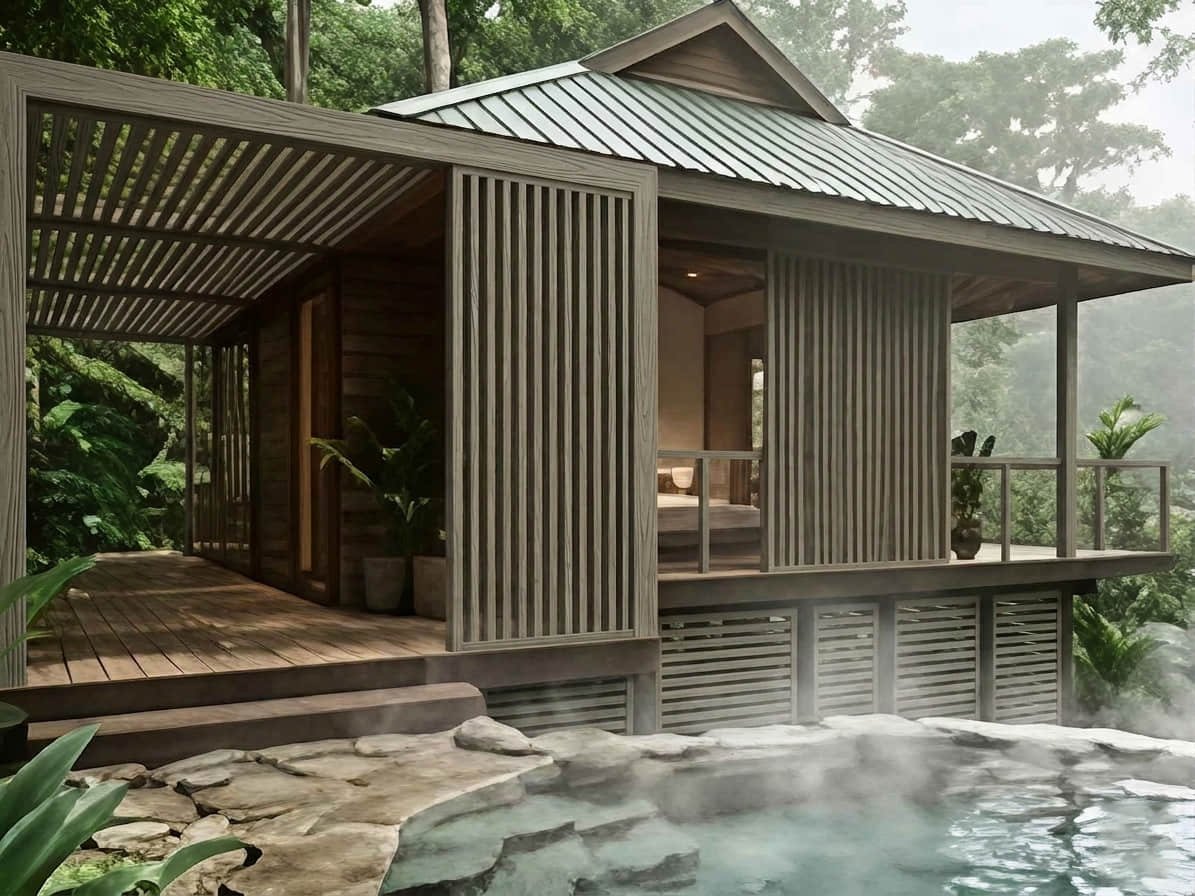

OAK01

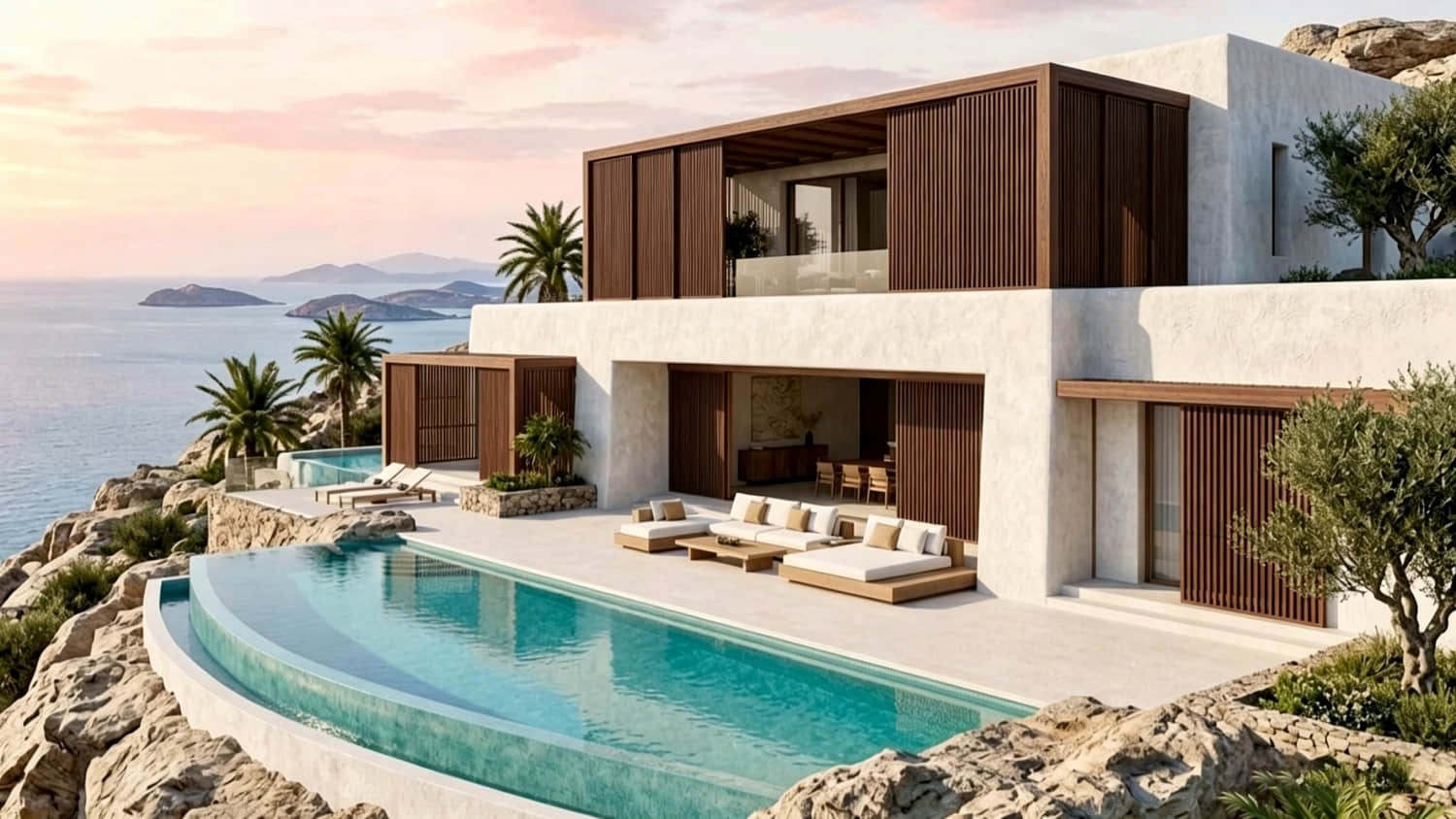

RB01

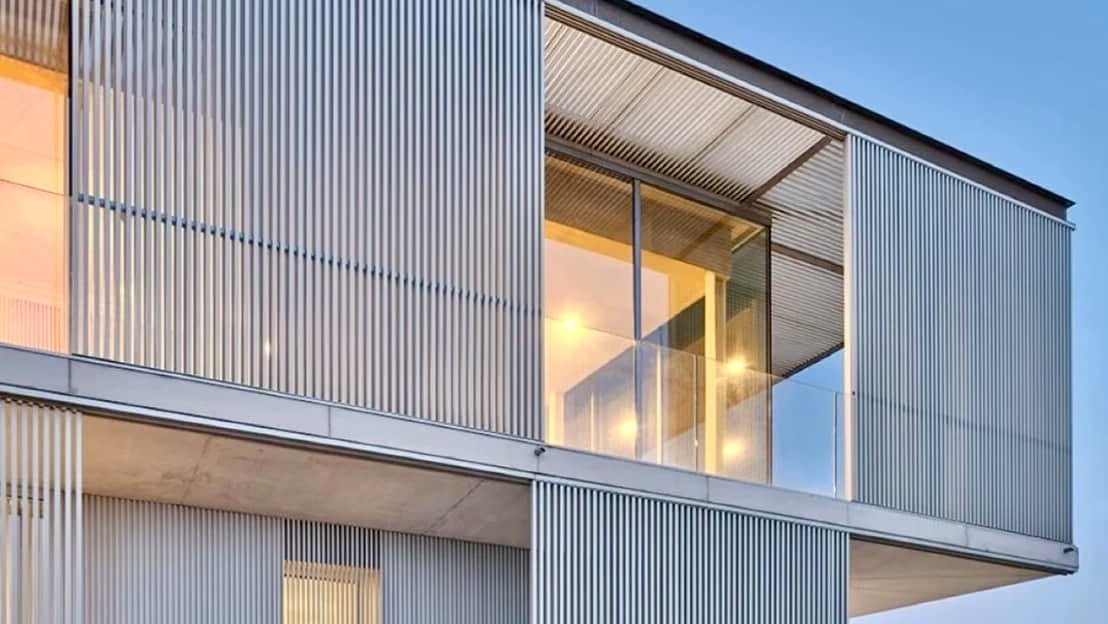

AT01
SI02

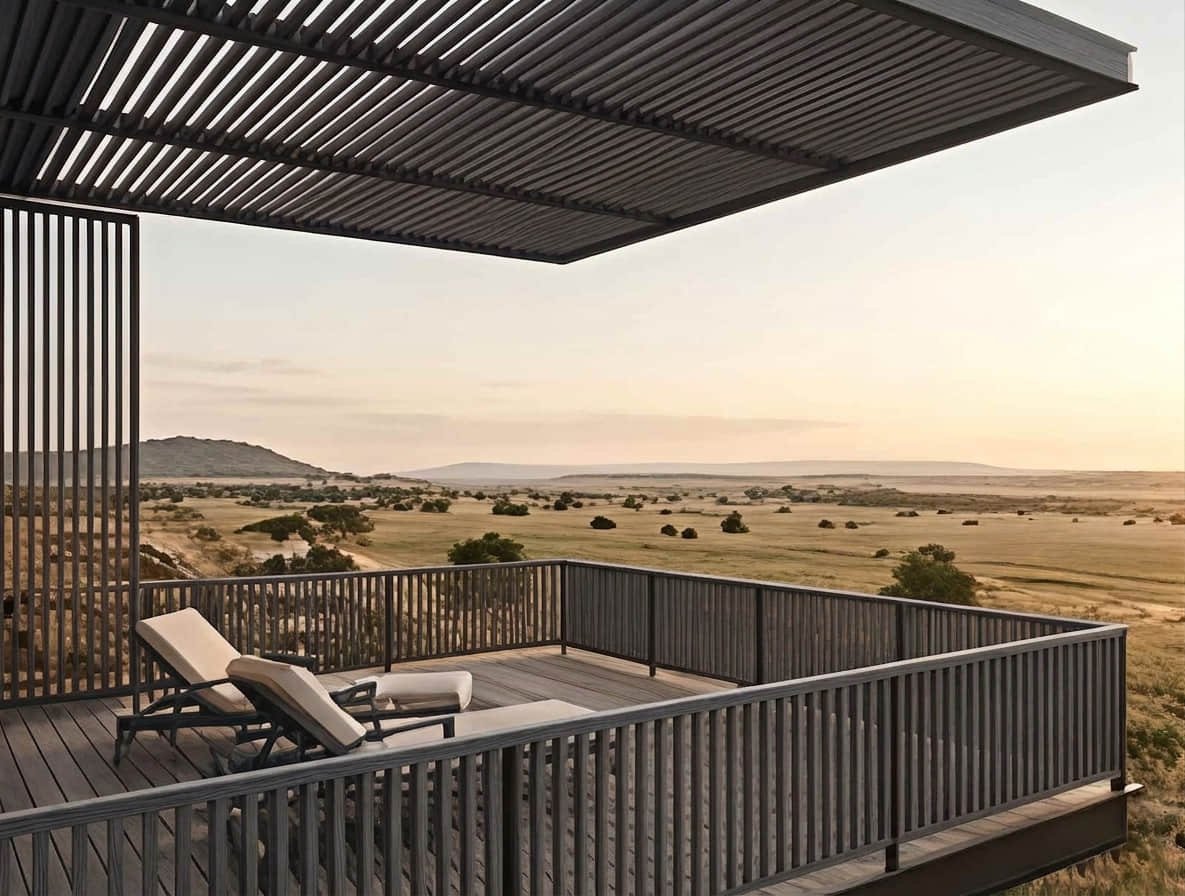

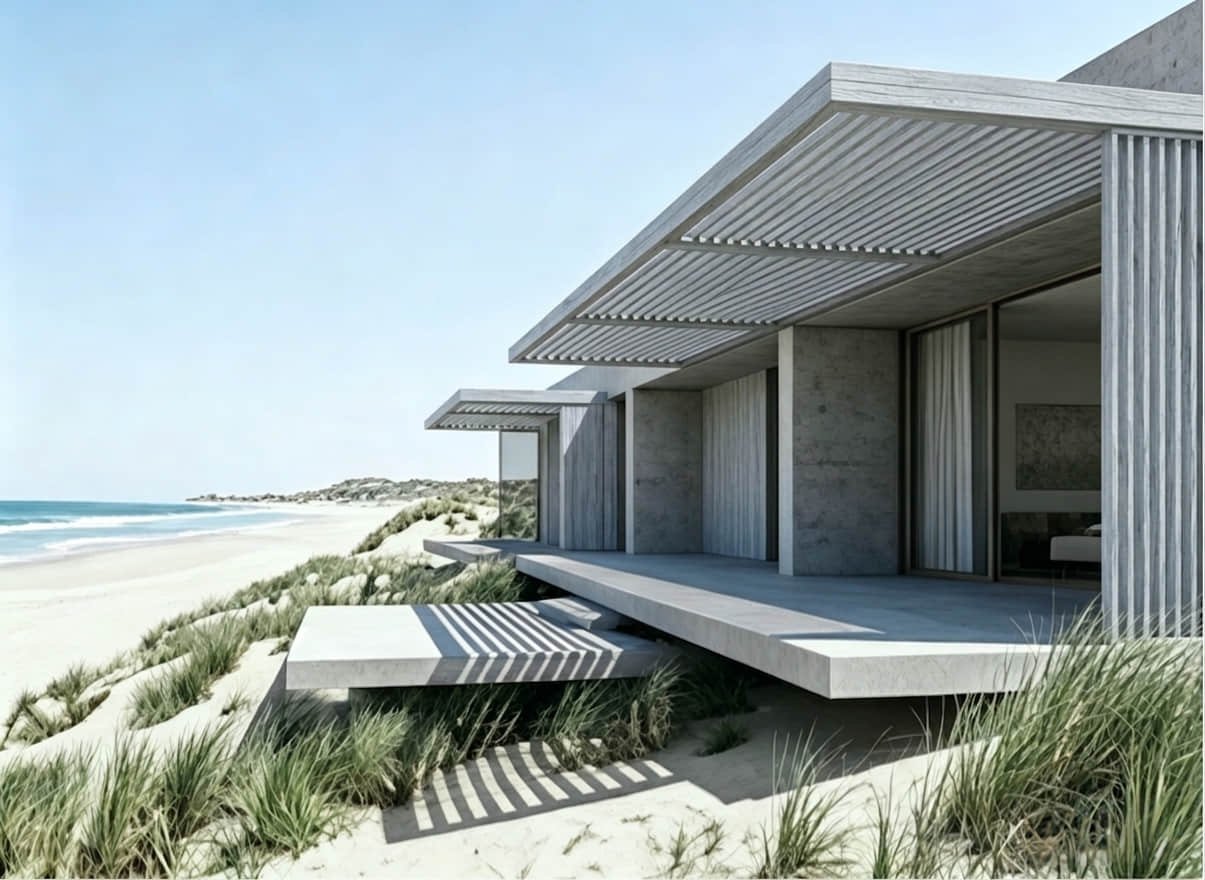

SI01
MATERIAL COMPARISON
Powder-coated aluminium battens have been the default specification for commercial architectural screening across Australia — but the real-world performance picture tells a more nuanced story. Linea Composite Screening delivers comparable structural integrity with a significantly warmer aesthetic, lower maintenance liability, and a lower total cost of ownership across a 10–15 year project lifecycle.
Linea composite fence panels are specified for external building facades and ventilation grilles, commercial interior screening partitions, retail and hospitality fitout feature walls, pergola and carport infill panels, and landscaping screens for commercial developments.

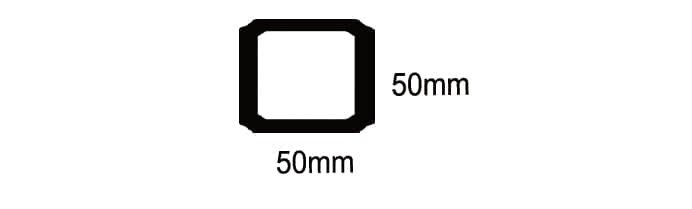

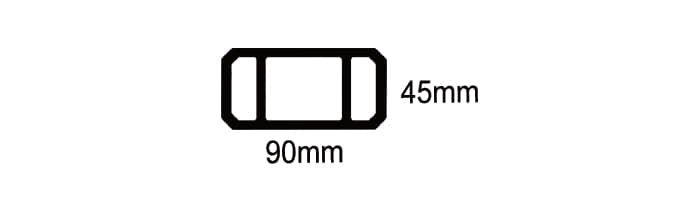

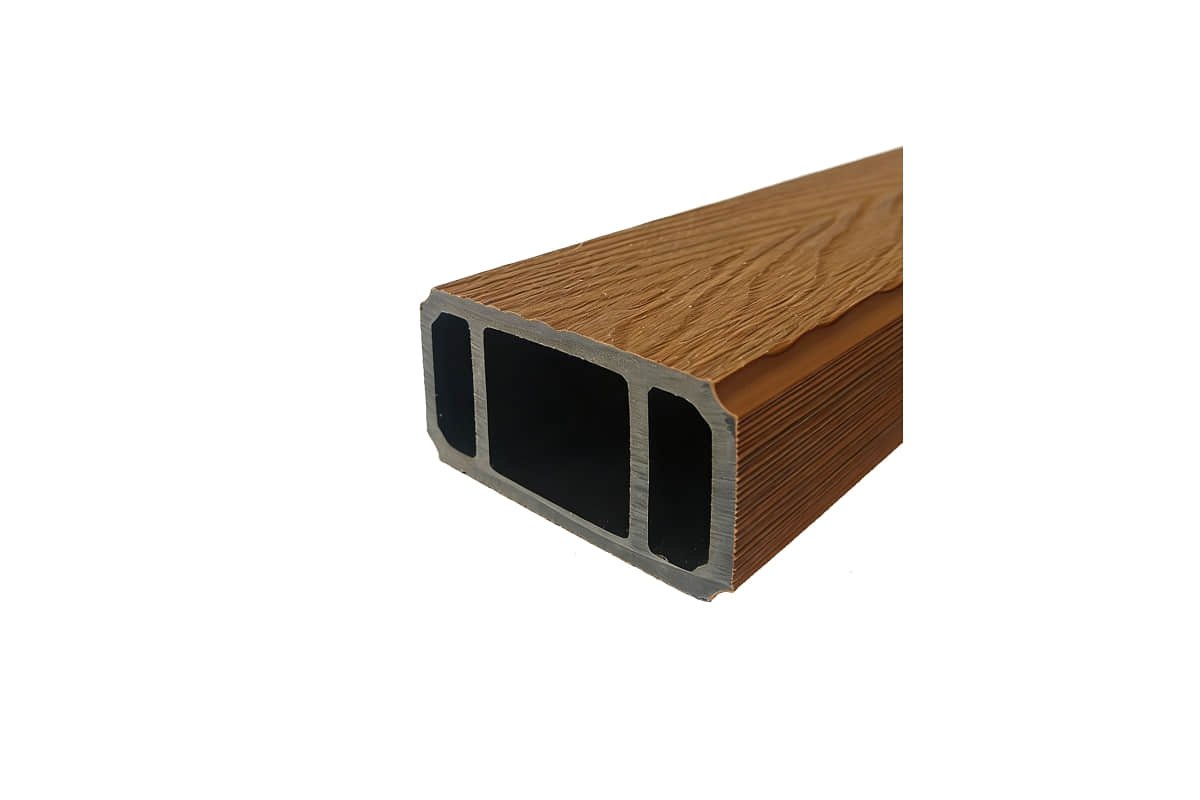

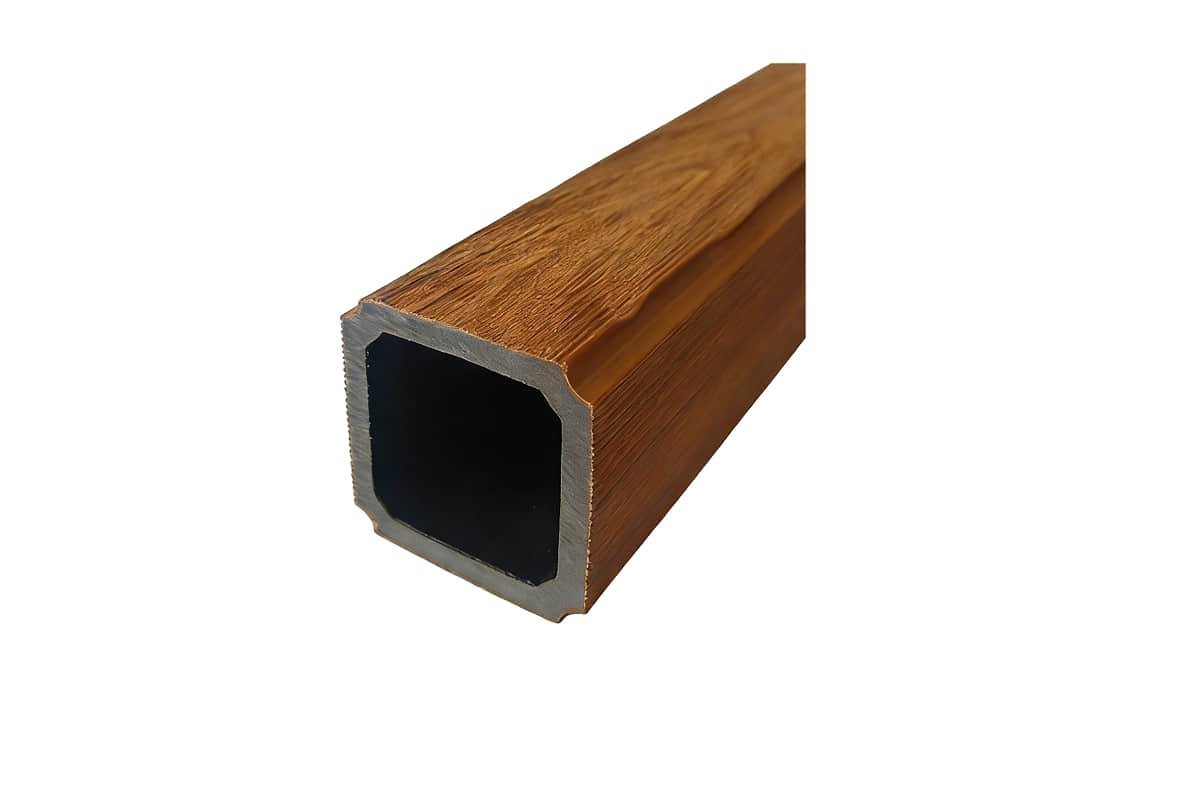

The two profile sizes — 45×90 mm and 50×50 mm — give designers control over visual density, light filtration, and shadow-line depth, making them suitable for both architectural statement elements and functional ventilation screens.
Yes. Linea composite fence panels are compatible with vertical, horizontal, and angled installation configurations. The appropriate sub-frame, clip type, and fastening method will vary by installation orientation.
Our technical team can guide span limitations and sub-frame requirements for specific project configurations.

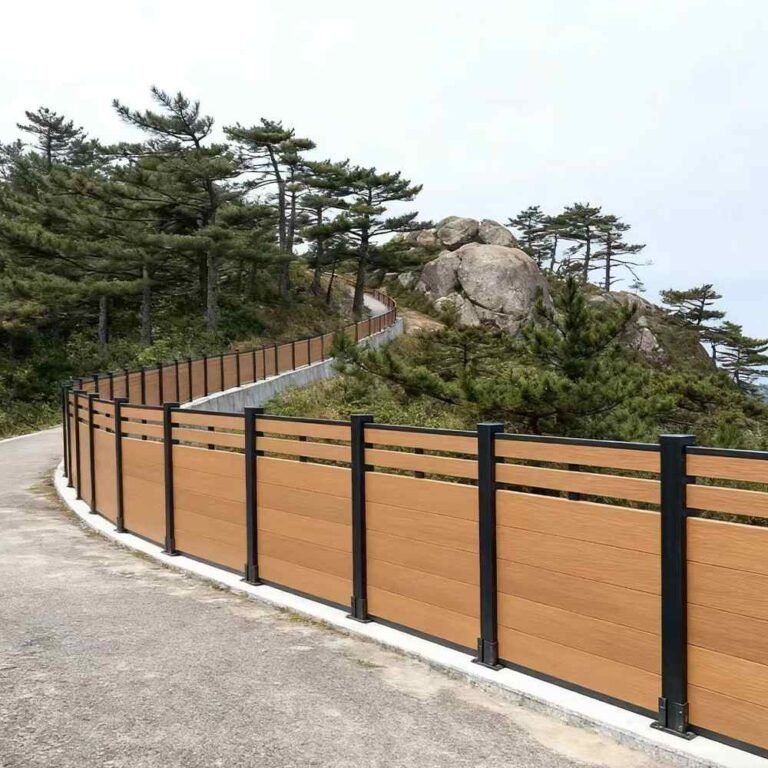

Linea composite fence panels are compatible with aluminium alloy and WPC post and rail sub-frame systems. A complete set of system accessories is available, including top and bottom trim strips, angle brackets, spaced clip fasteners, post caps, post skirts, and post edge trims. Recommended post spacing is between 0.8 m and 1.4 m and should not exceed 1.6 m.
Spacing determines the balance between visual screening, natural ventilation, and light transmission. Closer spacing provides greater privacy and visual blockage; wider spacing allows more airflow and a more open aesthetic.
Unlike fixed-panel screening systems, Linea’s individual batten format gives installers and designers precise control over this balance at the project level, without changing the product specification.
Linea composite fence panels contains 60% recycled HDPE content and carries CE, ISO, RoHS, and SGS certifications.
Full test documentation — including material composition data and recycled content declarations — is available on request and can be provided to support green building rating submissions and sustainability documentation requirements.
Yes. Full OEM and ODM customisation is available across batten length, colour finish, surface embossing, and packaging — including private-label packaging for wholesale and distribution accounts.
Custom profile moulds can be developed for projects requiring non-standard section dimensions. Contact our trade team to discuss sampling requirements, custom colour lead times, and minimum quantities for bespoke orders.
